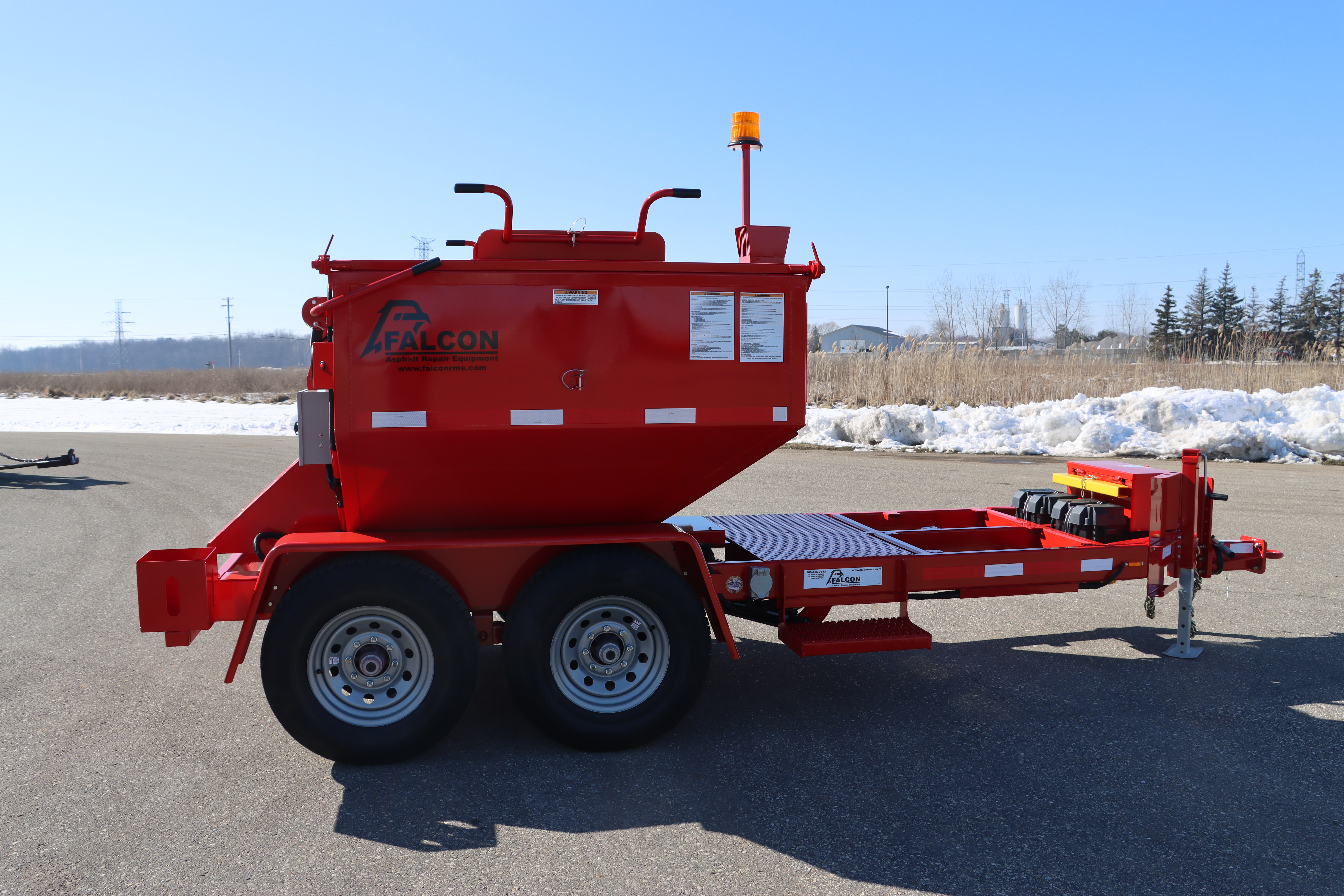

4-Ton Hot Box Trailer

The Falcon 4-Ton Hot Box trailer is Falcon’s most common machine model. It makes it easy for your work crews to repair utility cuts, patch asphalt and fix potholes. A wide range of equipment options provides unparalleled versatility.

The Hot Box and Recycler allow workers to transport both hot and cold mix while keeping it at the optimal temperature during the day—and holding it overnight for up to 72 hours. When built with an optional second burner, it allows you to reclaim and recycle asphalt. This can provide your crew with access to hot-mix asphalt year-round.

Benefits of a Falcon 4-Ton Asphalt Hot Box

Around 20% to 30% of hot mix cools before it can be effectively used in patching operations. This results in significant waste and financial loss over time. A Falcon Hot Box Trailer will keep the mixture at the optimum temperature while reducing waste. You can also recycle asphalt chunks and millings and reclaim unused hot mix with an optional dual burner system.

A standard dump truck has a raised bed that puts workers in an awkward physical position as they shovel asphalt mixture. Falcon Hot Box Trailers have an optimized shoveling height which results in less wear and tear on the backs, arms, and shoulders of your crew. This translates to increased productivity and fewer Workers’ Compensation claims.

You’ll get the following standard features with a Falcon 4-Ton Asphalt Hot Box:

  • Battery charger package
  • Automatic temperature control
  • VIP technology
  • One-piece ceramic combustion chamber (diesel)
  • Diamond tread plate hopper access platform
  • Heated shoveling platform
  • 12-volt deep cycle batteries
  • Conspicuity tape
  • Electric Brakes with safety breakaway
  • 16” tires
  • Manual loading and unloading doors
  • LED lighting (2 red and 1 amber light per side)
  • Amber strobe light (one per side)
  • Single diesel or vapor draw propane burner

Optional equipment includes:

  • Dump Box
  • Dump Box Power Up & Power Down Hydraulic Capability
  • Dual burner recycling package (24-hour timer or 7-day timer)
  • Hydraulic loading and unloading doors
  • LED light upgrades including LED arrow board
  • 30-gallon tack tank with spray system and hose reel
  • Basket for mounting compactor
  • Wash-down system
  • 24-hour or 7-day timer
  • Short frame – 14’ • XL frame – 18’, 20’
  • Electric overnight heat
  • Hoist – manual or electric
  • Tire upgrade
  • Propane torch with bracket
  • Surge Brakes
  • Other customizable options are available

How Do Falcon 4-Ton Asphalt Hot Boxes Work?

A Falcon Asphalt Hot Box comes with a one-piece ceramic combustion chamber that uses a diesel burner to heat and keeps the asphalt at an optimized temperature for the remainder of the work day—up to 72 hours afterward. Your work crew will only have to visit the asphalt plant once during their shift. This translates into increased productivity and less time spent preparing for the day’s work.

Asphalt Repair Areas

The chart below will help you determine which hot box is right for your application.



Type Hotbox Size Potholes Fixed Pothole Depth
2-Ton 9′ x 9′ x 4″ 80 1′ x 1′ x 4″
3-Ton 11′ x 11′ x 4″ 120 1′ x 1′ x 4″
4-Ton 12′ x 13′ x 4″ 160 1′ x 1′ x 4″
6-Ton 15′ x 16′ x 4″ 240 1′ x 1′ x 4″

Falcon Trailer-Mounted Hot Boxes

A Falcon Trailer Mounted Hot Box will provide you and your work crew with an efficient means of keeping hot mix asphalt for the entire work shift and up to 48 hours overnight. The recycling and reclaiming feature allows you to save money and make fewer trips to the asphalt plant.

Contact us below to speak with one of our experts to learn more about which Trailer-Mounted Hot Box is right for your operation.
